Real TITANIUM Grip
FIBER OPTIC AIR-TURBINES
Ti-Premium LUX 700 PLUS M SERIES
FIBER OPTIC AIR-TURBINES
Ti-Premium LUX 700 PLUS M SERIES
TITANIUM High-Performance Reliable Handpieces at an Affordable Price
The Ti- Premium LUX 700 PLUS M series of Fiber Optic high-speed handpieces has been enhanced to meet expectations in modern dental surgeries. Precision is engineered to offer the power and reliability required to perform clinical procedures. The new Ti-Premiumm LUX 700 PLUS M turbine cartridge delivers increased smoothness, while the bur retention system has been engineered to securely retain the bur under increased torque load. The Pure Titanium Grip and the durable stainless steel head are comfortable to hand. They are angulated at the optimum degree for excellent direct visibility of the operating site, without compromise—KaVo®® MULTIflex™ Typeconnectionn Fiber Optic Handpiece with Titanium Grip & Miniature Head.

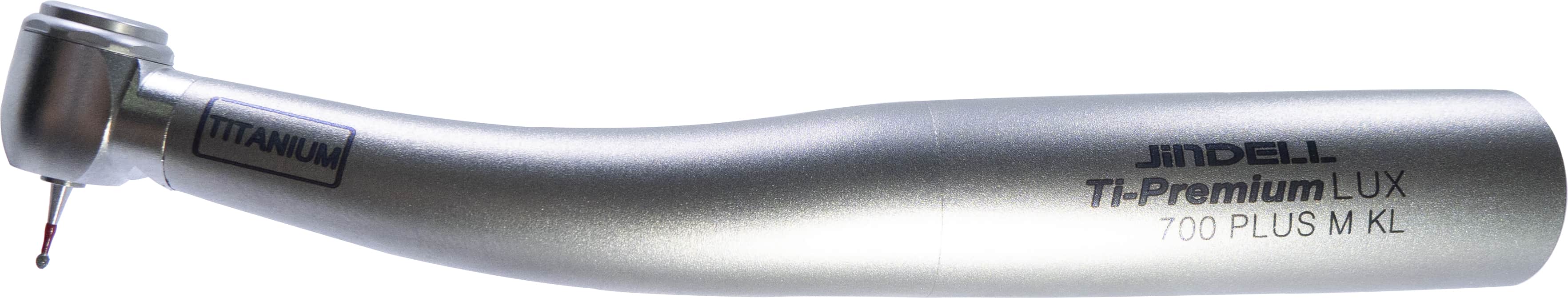

Model Name: Ti-Premium LUX 700 PLUS M KL
Features:
- 30% lighter weight than the standard Air Turbine, reducing the burden on your hand while in use.
- High robustness and Lightweight due to Corrosion. The highest strength of Titanium Grip. Sturdy stainless-steel head to resist damage when dropped and knocked. Scratch-resistant surface finish.
- The Miniature Head's dimensions (Ø10.6 mm x H12.4mm) ensure ergonomic comfort and precise results while guaranteeing an optimum lifespan.
- Quick stop the burin in under 2~3 seconds, increasing efficiency and improving safety during treatments.
- Combined with an LED light bulb incorporated in Coupling, clear intraoral visibility is guaranteed.
- Anti-retraction suction hygiene sealed head—combined with a non-return valve, this wear-resistant mechanism prevents oral fluids and other organisms from seeping into the instrument head, water pipes, and treatment equipment. It avoids the risk of cross-contamination in the patient and prolongs the life of the ball bearings. The ultra-precise atomizing system consists of a 4-nozzle asymmetrical mixed water spray optimal cooling, which provides integral optimal cooling of the treatment site.
- Whisper Quiet, vibration-free operation ≦57 db(A) Sound level, provides a better patient experience and a comfortable working environment.
- Idling speed 380,000~450,000 min-1.
- Push button Chuck & Back cap.
- Robust, Premium-Quality Ceramic ball bearings, which are wear-resistant, give the handpiece a longer useful life and reduce noise levels.
- Fiber optic Glass rod.
- Powerful torque of 23 watt.*
- The lighter weight is 48.2 grams.
- Available to KaVo® MULTIflex™ type Coupling.**
- Scratch-resistant surface improves aesthetics even more – and extend their life.
- Fatigue-free work.
- Thermo washer disinfectable and sterilizable up to 135°C or 275°F.
- FG burs Ø 1.6 mm for bur lengths up to 21 mm.
- Stand for a long service life with a limited warranty of at least 12 months.
- Compatible with NSK® S-Max™ M800L Turbine cartridge. The whole dental handpiece has a long service life and a limited warranty of at least 24 months, except for the Bearings of the Air Turbine.
- The bearings of the air turbine stand for a long service life, and they are covered by a limited warranty of at least 12 months.
- We are improving the upgraded wedge design for enhanced clamping force & improved bur retention over time.
- Precision Balancing.
- State-of-the-art manufacturing cell for impellers.
- Stainless steel bur guide bushing improves bur concentricity and extendsd chuck life.
- Heat-treated, precision-ground spindle with honing of critical dimensions reduces chuck wear and prolongs life.
- EDM precision machined collet.
NSK® PHATELUS™ PTL TypeConnectionn Fiber Optic Handpiece with Titanium Grip & Miniature Head.

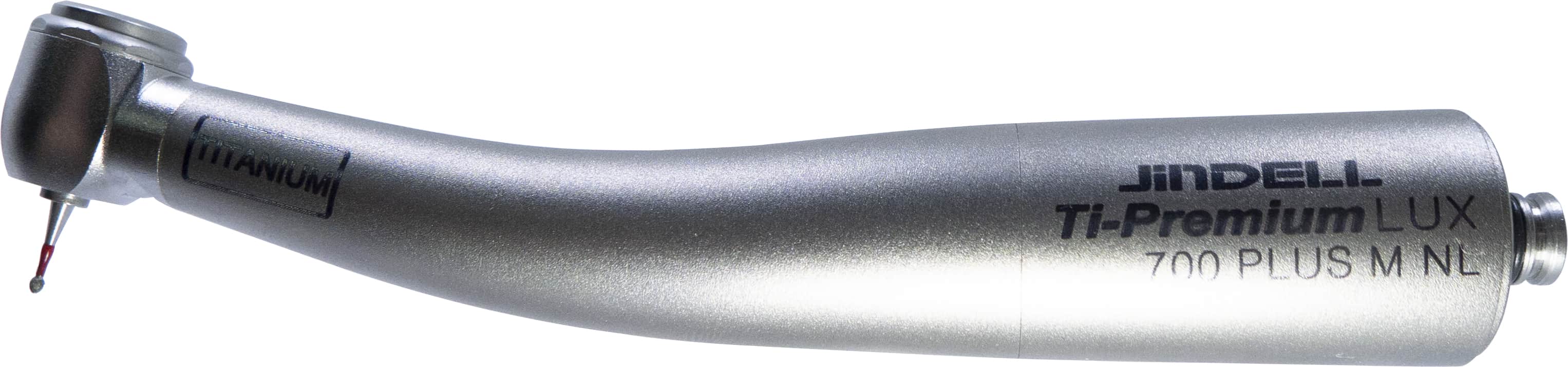

Model Name: Ti-Premium LUX 700 M PLUS NL
Features: Lightweight 38.2 grams. / Compatible to NSK® S-Max™ M800L Turbine cartridge. / Available to NSK® PHATELUS™PTL type Coupling** .
Sirona® Typeconnectionn Fiber Optic Handpiece with Titanium Grip & Miniature Head.

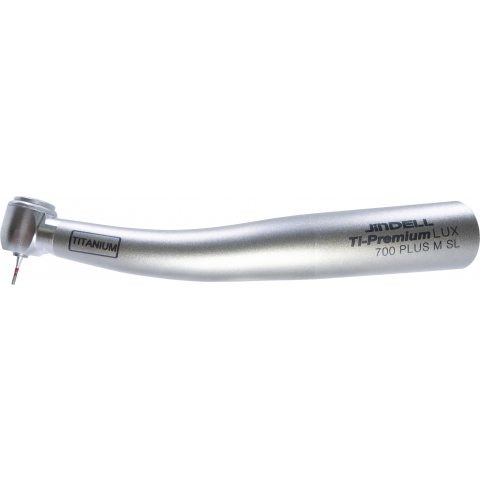

Model Name: Ti-Premium LUX 700 PLUS M SL
Features:
- Light Weight 42.2 grams. / Compatible to NSK® S-Max™ M800L Turbine cartridge. / Available to Sirona® type Coupling** .
Wide Compatible with couplings of W&H® ROTO™ Quick (RQ Type) / Bien - Air® UNIFIX™ / MORITA® / YOSHIDA® / Sirona® ...and can be connected to units currently in use**.
* Performance value applies at a rated pressure of 3 bar and exhaust air pressure of max. 0.2 bar
** NSK® PHATELUS™ & KaVo® MULTIflex™ & Sirona® & W&H® ROTO™ & Bien - Air® UNIFIX™ & MORITA® / YOSHIDA® are trademarks of third parties not affiliated with JinDELL Medical Instruments Co., Ltd.
